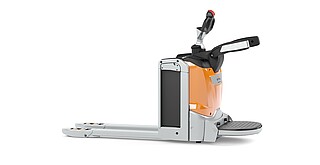

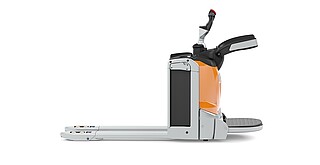

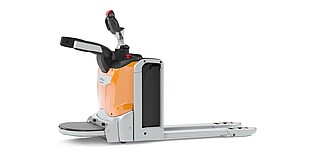

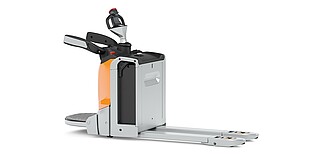

Low Lift Pallet Truck EXH-SF 16C-20C
Lightens the load
- Løftekapacitet 2000 kg
- Løftehøjde 125 mm
- Fart 8.5 km/h
Manoeuvrability and intuitive operation taken to a new dimension – the EXH-SF 16C/20C low lift pallet truck with folding stand-on platform is the smart assistant for light to medium duty horizontal transport operations. With its impressively slim dimensions, the pallet truck is very easy to manoeuvre when loading and unloading HGVs and can be operated with precision thanks to the electric steering and the innovative STILL tiller. The innovative STILL LED or touch display integrated in the tiller head provides even more working ergonomics and an excellent overview of all relevant truck data.
For maximum safety and increased handling performance at the same time, the EXH-SF 16C/20C features the STILL Curve Speed Control driver assistance system as standard, which automatically adjusts the speed when cornering. Sturdy side bars and a generously dimensioned sprung stand-on platform ensure safety and comfort during operation.The innovative STILL lithium-ion technology enables fast charging and interim charging of the battery during breaks, which ensures maximum availability of the smart warehouse assistant. In addition, different battery sizes are available to suit your individual requirements.
De "simpelthen effektive" faktorer: Performance-attributter som et mål for økonomisk effektivitet
Simply easy
Easy access and optimal protection for the operator’s back and joints:
low access point and mechanically suspended stand-on platform
Optional built-in charger
for decentralised charging at any power socket
Optimal utilisation of storage space:
compact dimensions and high manoeuvrability facilitate narrow working aisles
A high level of comfort and excellent driving on any surface:
the stand-on platform is mechanically suspended
Simply powerful
Built for continuous operation:
reliable and low-maintenance drive
Swift, safe movement on ramps:
high-powered drive and lift motor and 5-wheel chassis with sprung support wheels
Instant charging:
lithium-ion model achieves 50 percent charge level in only 30 minutes and is fully charged in only 90 minutes
Designed to handle even the toughest applications:
robust, durable chassis made from solid steel
Simply safe
Simply work with precision
thanks to unobstructed field of vision: good view of the fork tips and centrally mounted tiller
Accidental roll-back impossible:
automatic stop function even on ramps
Fast and safe cornering:
Curve Speed Control automatically adapts speed to the steering angle when cornering
Safe load handling in confined spaces
thanks to compact dimensions
Simply flexible
Suitable driving programmes for any application,
from maximum handling power to optimal efficiency: ECO, BOOST or Blue-Q
Ready for use at all times:
battery capacities up to 500 Ah and optional STILL lithium-ion battery for round-the-clock availability
Decentralised and flexible chargingat any power socket
with the optional built-in charger
Flexibly configurable driver’s cab
for various main applications, from frequent ramp driving through to long transport distances: rear access, side access
Simply connected
Versatile, flexible access control
with FleetManager 4.x
Fast service analysis and parametrisation of settings
thanks to CAN bus interface
Easy integration into material flow management system
thanks to MMS provision
STILL Li-Ion teknologi indeni
Det perfekt harmoniserede elsystem til reduktion af driftsomkostninger og øget tilgængelighed af lastbiler.
Mere om STILL Li-Ion-teknologi
| Model | Maksimal kapacitet (Kg) | Maksimal løftehøjde (mm) | Fart (km/t) | Batteri volt |
|---|---|---|---|---|
| EXH-SF 16C / Li-Ion | 1.600 | 125 | 8.5 | 24 |
| EXH-SF 20C / Li-Ion | 2.000 | 125 | 8.5 | 24 |
Dokumentet til download er den opdaterede version af driftsvejledningen til standardtrucken. Det inkluderer ikke beskrivelser af kundemuligheder (Kundemulighed). For en betonbil, bedes du anmode om den respektive specifikke manual i henhold til serienummeret og produktionsåret fra STILL-reservedelsservicen.
